COMM1 Commercial 1 Zone 12 Tray Dehydrator

The COMM1 Excalibur is an innovative, state-of-the-art, computer controlled commercial dehydrator. Fully manufactured and imported from the United States from high quality stainless steel and NSF Approved. Excalibur's Commercial Dehydrators are the perfect solution for many types of businesses. While smaller dehydrators are great for home use or starting a business, they quickly become time consuming and tiring once your market grows.

The COMM1 unit is built for the commercial requirements of drying foods of all types, from fruits and vegetables to jerky and yoghurt. It is also popular within the laboratory environment where high capacities of sample dehydration is required. The benefits of purchasing an Excalibur Commercial Dehydrator will far exceed the benefits of doing batch after batch in a small machine. If you are ready to increase production and need a larger capacity dehydrator, the solution is here.

Excalibur's cumulative dehydrating knowledge has gone into the development of the commercial line of NSF dryers. The innovative multiple motor design creates precision airflow and increased thermal control. Four small electric motors and heating elements run the 16.5cm fans inside; these are the same reliable units as found in the domestic appliances.

The COMM1 comes equipped with 12 commercial stainless steel trays for a total of 4.6m² drying area, four heavy duty fans, 99 hour digital timer, programmable digital computer control, incorporating Temperature Cycling Technology, easy clean features for a commercial environment, Hyperwave™ Patented Technology, and Parallex® Horizontal Air Flow.

The unit comes with a 1 Year Limited Manufacturer's Warranty (to the initial retail purchaser) if properly installed by a qualified electrician.

Shipping of commercial units is to be arranged as a separate expense. The unit is well-packed and palletised.

NOTE: Units are made to order with a lead time of approximately 4 weeks if shipped by air freight.

COMM1

Excalibur

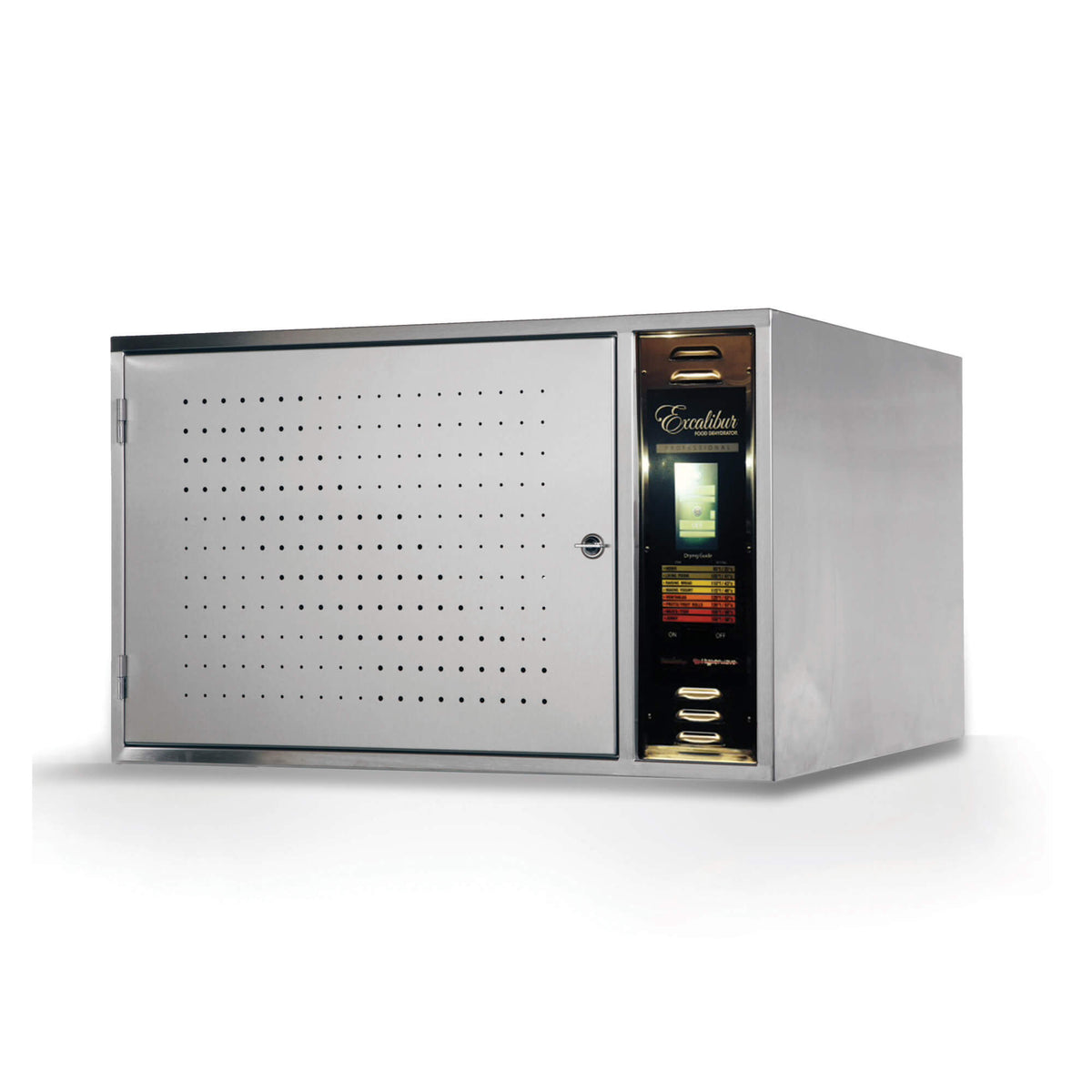

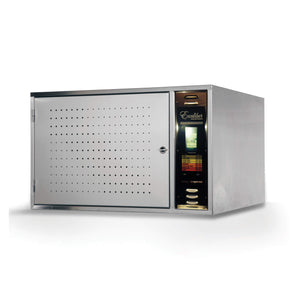

COMM1 Excalibur with front door closed.

Features.

Programmable Digital Control Unit

Digital Display

Temperature Cycling Technology

100% Stainless Steel

99 Hour 59 Min Timer

12 Commercial Stainless Steel Trays

Easy Clean Design

NSF Certification

Hyperwave™ Fluctuation Technology

Parallexx® Horizontal AirFlow

Hyperwave™ Fluctuation Technology

Excalibur’s adjustable thermostat lets you take advantage of Hyperwave™ Fluctuation for faster, better, safer dried foods. Food temperature stays low enough to keep the enzymes active, and the air temperature gets high enough to dry food fast.

Parallexx® Airflow

Excalibur dehydrators feature the exclusive Parallexx® drying system for even drying. Cool air is drawn in, heated, and distributed evenly over each tray, helping dry the food faster, retain more nutrients, taste and look better, without the need for tray rotation.

100% Stainless Steel

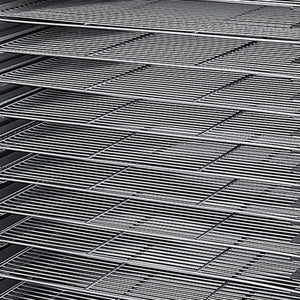

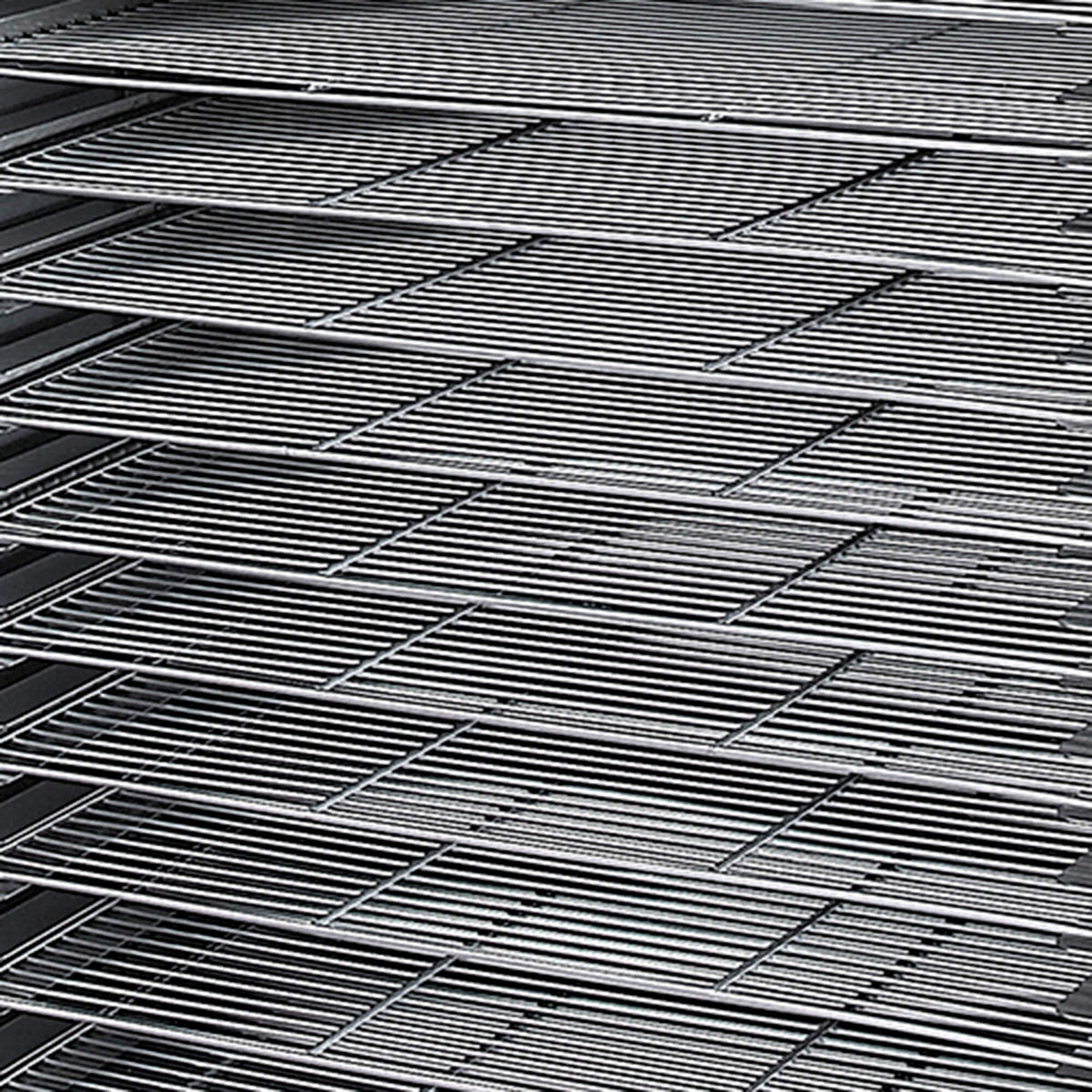

Built specifically for a commercial environment with all stainless steel construction, interior and exterior, as well as fully stainless steel trays, the COMM1 is built to last. Increase productivity with a 4.6m² of shelf space on 12 x 100% high grade commercial sized stainless steel trays, each measuring approximately 60cm x 64cm.

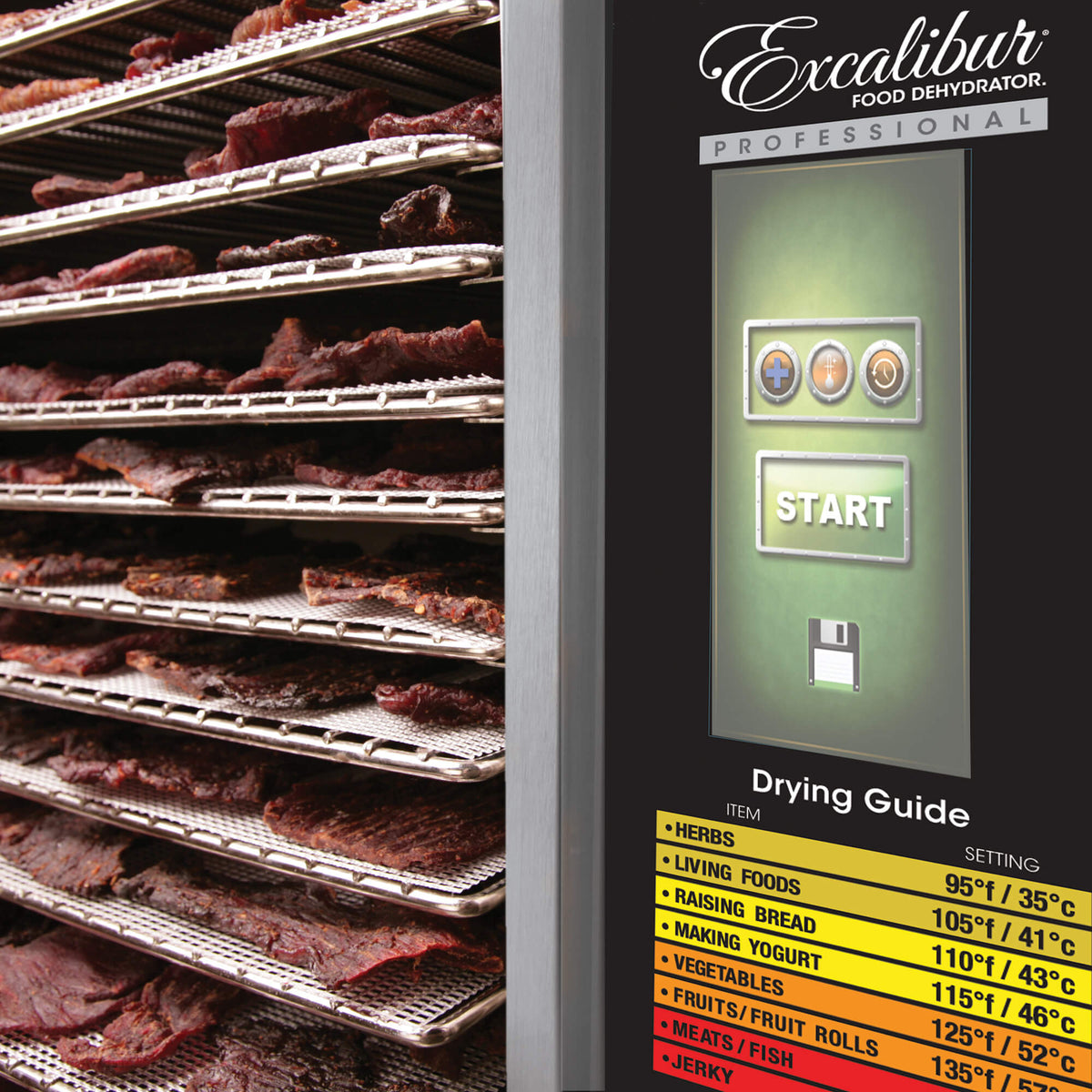

Close up view of the COMM1 Excalibur digital display.

Digital Display

Computer Control.

The COMM1 unit comes equipped with a fully digital display, incorporating a programmable digital computer control unit, including Ethernet controls, that utilises Temperature Cycling Technology, allowing various Time/Temperature drying profiles, and an automatic cool down/shut off feature so you no longer have to manually manipulate drying temperature or timers. The COMM1 also incorporates a wide range of redundancy features designed to minimise downtime in a commercial environment. The user can adjust fan delay, alarm type and beeper cycle, and may also select the readout to display in Celsius or Fahrenheit.

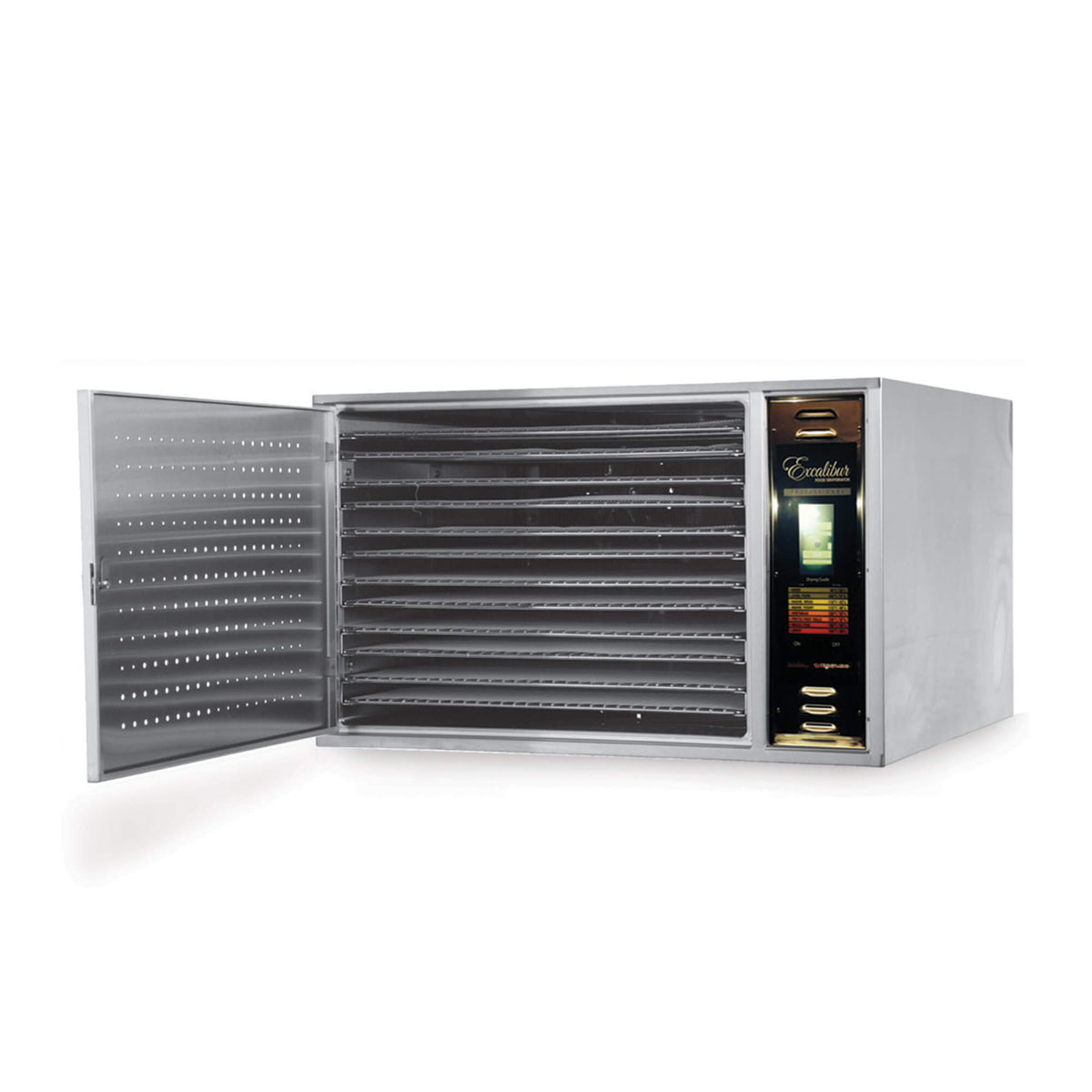

COMM1 Excalibur with front door open.

Easy

Cleaning.

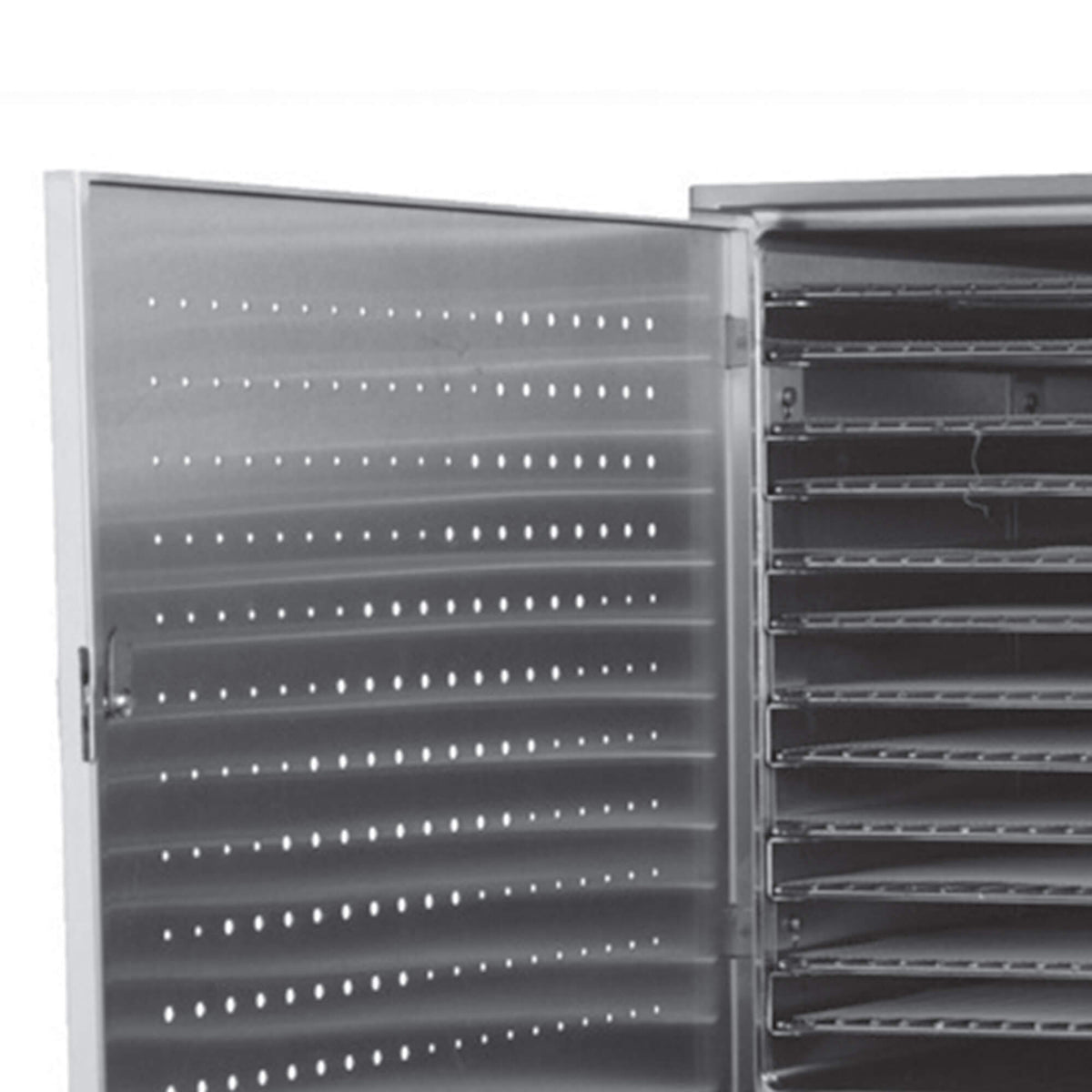

Excalibur knows how important it is to have commercial appliances that are easy to clean. The COMM1 has smooth radius walls with no sharp edges allowing for easy wipe down. The front door is completely removable, while the back door opens fully allowing for thorough cleaning of the food zone. In addition, removable rack weldments ensure ease of access inside the unit and the motor and fan are connected to a hinged back assembly, which is held to the case with wing nuts, allowing easy access when cleaning.

NSF

Approved.

The NSF Mark is your assurance that the product has been tested by one of the most respected independent certification companies in existence today, NSF International. NSF International is The Public Health and Safety Company™, providing public health and safety risk management solutions to companies, governments and consumers around the world.

Most importantly, NSF Certification is not a one-time activity. NSF does not just test a single model of a product and gives its okay. Their certification program requires regular on-site inspections of Excalibur’s manufacturing facilities. In addition, the commercial dehydrators are periodically re-tested against the requirements of the most current national health and safety standards.

The NSF Certification mark ensures that your new commercial appliance has been inspected by a recognised organisation, as you potentially may be inspected by your local or state health department. Many inspectors look for the NSF Mark on your equipment. With equipment such as the COMM1 Excalibur that have passed through strict requirements and inspection, you have one less element to worry about.

Tech Specs.

Model

RES10

# of Trays

12

Thermostat

26ºC – 94ºC (80ºF – 200ºF)

Timer

99 Hour 59 Min - Digital

Tray Size

Individual Tray - 64cm x 60cm (25.2″ x 23.6″)
Total Tray Space - 4.6m² (49.5ft²)
Space Between Trays - 3cm (1.18")

Dimensions

Unit - 51cm x 79cm x 83cm (20.1" x 31.1" x 32.7")

Shipping Dimensions:
Pallet #1 - 107cm x 107cm x 68.5cm

Wattage

2400 Watts single phase electricity

It is suggest you hard-wire the unit; a plug can be wired but is not included. If the unit is modified in any way the warranty is void.

A 30 amp breaker is suggested to be installed when the unit is hard-wired into its location (must be properly installed by a qualified electrician).

Fan Size

4 x 16.5cm (6.49") (aluminium)

Four small electric motors and heating elements run the fans

Weight

68kg (149.9lbs) net / 114kg (251.3lbs) gross

Included

  • 12 x stainless steel trays
  • 12 x FDA approved, BPA free mesh Polyscreen sheets
  • Owners manual
